Hello,

I have run into similar issues with some of our ACR MR submissions.  I don't have a Philips system so was working with different parameters but took the same approach you propose - fill out the form so the proper in-plane resolution was calculated at the end of the form.  The submission was accepted for ACR accreditation without issue.

Hope that helps,

Leah



Leah Henze Bancroft, PhD
She/her/hers
Assistant Professor
Department of Radiology
University of Wisconsin-Madison
School of Medicine and Public Health
Office: 1311 WIMR
Phone: (608) 265-9018





________________________________
From: Intl_dxmedphys_wd_osu_list <intl_dxmedphys_wd_osu_list-bounces at lists.osu.edu> on behalf of Meier, Joseph via Intl_dxmedphys_wd_osu_list <intl_dxmedphys_wd_osu_list at lists.osu.edu>
Sent: Thursday, July 2, 2026 4:24 PM
To: DxMedPhys List <intl_dxmedphys_wd_osu_list at lists.osu.edu> <intl_dxmedphys_wd_osu_list at lists.osu.edu>; Brady, Samuel <Samuel.Brady at cchmc.org>
Subject: [Intl_DxMedPhys] ACR MRI Philips Prescribed Phase FOV Question


WARNING: This email appears to have originated outside of the UW Health email system.
DO NOT CLICK on links or attachments unless you recognize the sender and know the content is safe.

Hello, For ACR MRI submission, our Philips body/spine images have a prescribed FoV in the phase direction that is larger than the reconstructed phase FoV. (e. g. , percent phase FoV is 175) to prevent aliasing. Since the ACR form calculates the

Hello,

For ACR MRI submission, our Philips body/spine images have a prescribed FoV in the phase direction that is larger than the reconstructed phase FoV. (e.g., percent phase FoV is 175) to prevent aliasing.

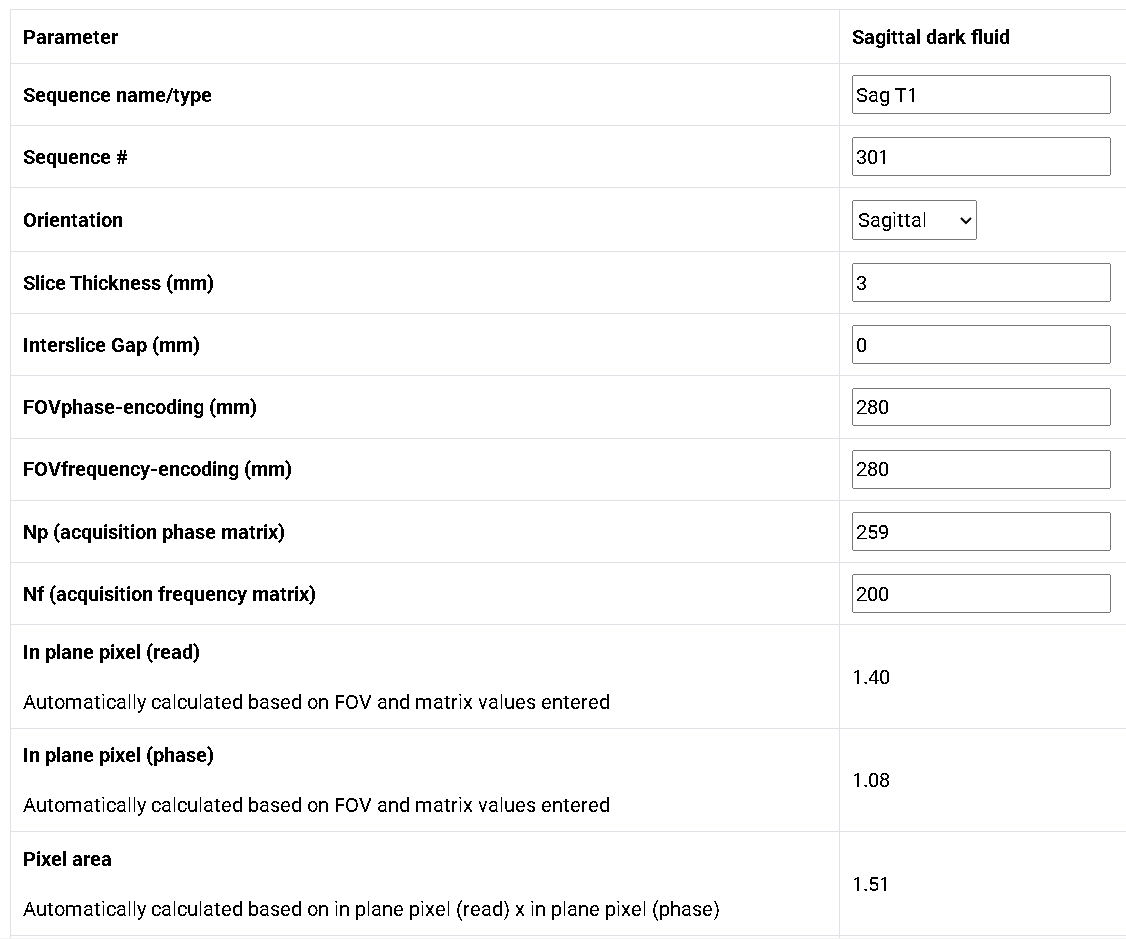

Since the ACR form calculates the in plane resolution, I assume we should enter in the Reconstructed Phase and frequency FoVs for our submission as follows:



Freq FoV = 280

Prescribed Phase FoV = 490

Percent Phase FoV = 175

Phase FoV to be entered on the ACR data sheet should be 280 e.g., 490/1.75 = 280

Thank you for your insight,

Joe Meier



[cid:bfde3bb7-9a0f-493a-8557-36370e979f05]


Joseph Meier, PhD

Diagnostic Imaging Medical Physicist, Cincinnati Children’s Hospital

Assistant Professor, University of Cincinnati

3333 Burnet Ave, MLC 5031

Cincinnati, OH 45229-3026

(713) 422-3597 (O)

(513) 636-7775 (Administrative Assistant)





[cid:489d49e8-b19d-436d-bd62-c2413508b4bc]
