[Intl_DxMedPhys] How far can an MRI Eq. Rm. be?

[xuandong zhao]

all (most) mobile unit have equipment room and scanner separated by the
control area. Except that the control area maybe not as spacious as in your
diagram

On Tue, May 12, 2026 at 5:05 PM Hardy, Peter A. via
Intl_dxmedphys_wd_osu_list <intl_dxmedphys_wd_osu_list at lists.osu.edu> wrote:

> I am not sure of the limitations on separation of scan room and equipment
> room. Typically, they are adjacent so that the filter or penetration panel
> is accessible in both rooms. Would a long distance between the two rooms
> increase the inductance
> I am not sure of the limitations on separation of scan room and equipment
> room. Typically, they are adjacent so that the filter or penetration panel
> is accessible in both rooms. Would a long distance between the two rooms
> increase the inductance of the gradients?  In this case the penetration
> panel will be above the operator and above the ceiling tiles. So it will
> not be eadily accessible. I have one site like that and it works. One
> annoying feature is that the gradient cables have a fan on them which the
> operator has to listen to all the time.
>
> Get Outlook for Android
> <https://urldefense.com/v3/__https://aka.ms/AAb9ysg__;!!KGKeukY!3qisdQduh9JNr3fuLjEaV2kp9v3RnY7ndvugDpdNEK3OBP7iu1GPHhBqRQczPZT4gzhssoo-znECCdwkih-f1gOZzkRk-O-pjHRn_54wf7m_$>
> ------------------------------
> *From:* Intl_dxmedphys_wd_osu_list <
> intl_dxmedphys_wd_osu_list-bounces at lists.osu.edu> on behalf of Nima
> Kasraie via Intl_dxmedphys_wd_osu_list <
> intl_dxmedphys_wd_osu_list at lists.osu.edu>
> *Sent:* Tuesday, May 12, 2026 1:48:45 AM
> *To:* DxMedPhys List <intl_dxmedphys_wd_osu_list at lists.osu.edu>
> *Subject:* [Intl_DxMedPhys] How far can an MRI Eq. Rm. be?
>
> CAUTION: External Sender
>
> Hey folks, Here’s another one for you: So they’re building a new $5Billion
> pediatric hospital here on campus that will open in 2031 with 9 MRI
> magnets. But I noticed this in the plans of the interventional MRI: I have
> never seen
>
> Hey folks,
>
>
>
> Here’s another one for you:
>
>
>
> So they’re building a new $5Billion pediatric hospital here on campus that

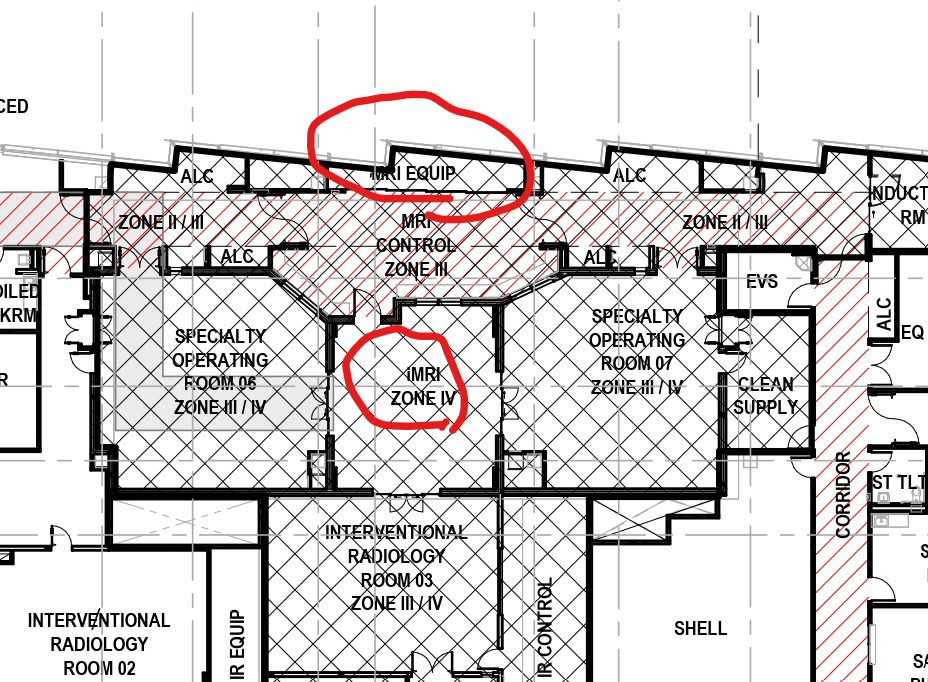

> will open in 2031 with 9 MRI magnets. But I noticed this in the plans of
> the interventional MRI:
>
>
>
>
>
> I have never seen an equipment room placed so far from a Zone 4 room. Will
> this even work? I mean, cables thru the ceiling?? Will vendors accept this?
>
>
>
> Thoughts?
>
>
>
