[Intl_DxMedPhys] ACR phantom weird images

[Alyona]

Hi, I had a similar issue once with a Siemens scanner where the slice
thickness would not change regardless of the setting I applied.
The facility contacted Siemens and they recommended changing the* inline
filter *in service mode.
The issue was fixed immediately after.
Hopefully, this will work for you.

[image: image.png]

On Tue, Mar 3, 2026 at 7:34 PM Bob Kobistek via Intl_dxmedphys_wd_osu_list <
intl_dxmedphys_wd_osu_list at lists.osu.edu> wrote:

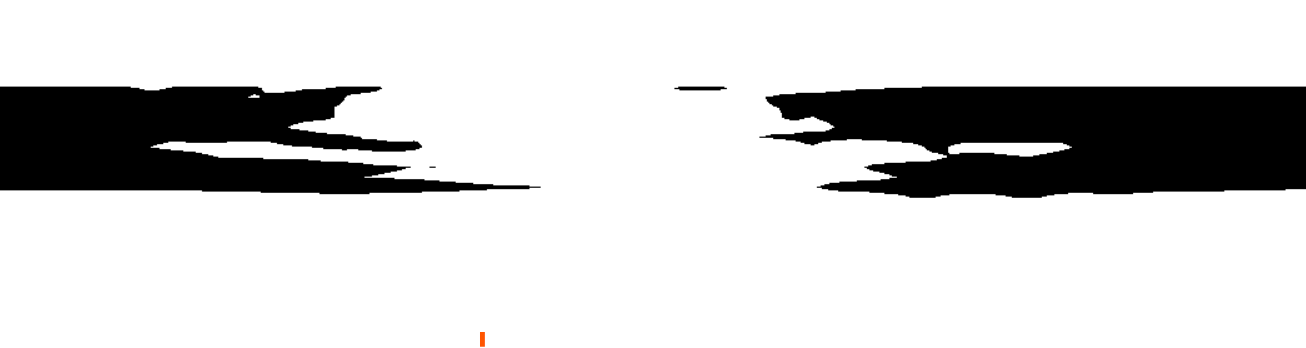

> I’m having difficulty with the slice thickness ramps on an ACR phantom
> scan on a Siemens Magnetom Lumina scanner. (3T) The following is an image
> of the slice thickness ramps with the window set as described in the
> scanning instructions
>
> I’m having difficulty with the slice thickness ramps on an ACR phantom
> scan on a Siemens Magnetom Lumina scanner. (3T) The following is an image
> of the slice thickness ramps with the window set as described in the
> scanning instructions on the ACR T2 sequence. What a mess!
>
>
>

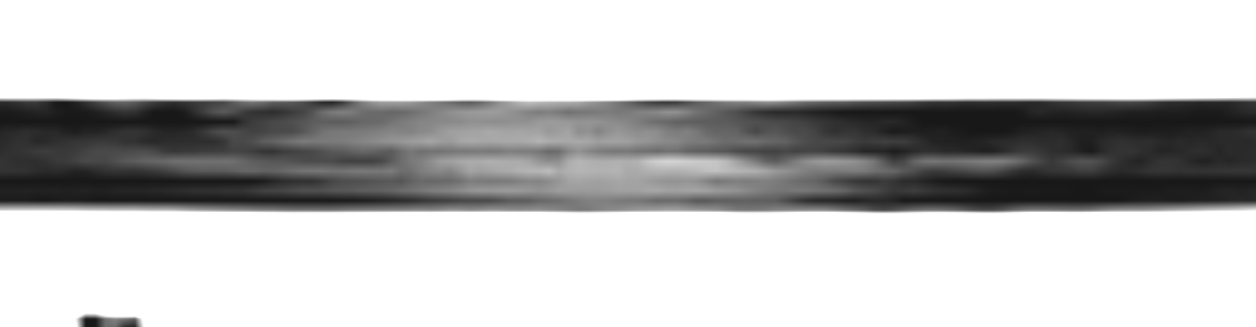

> This is what it looks like with normal windowing:
>
>
>
> The ACR T1 series is messy, but not as bad. I tried turning filters on and
> off. Suspecting it might be due to excessive Gibbs ringing, I increased the
> bandwidth. No difference.
>
>
>
>
>

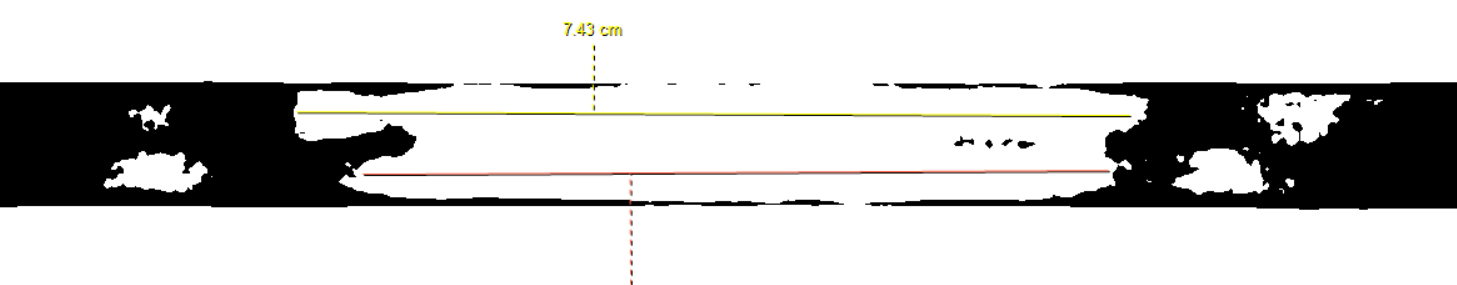

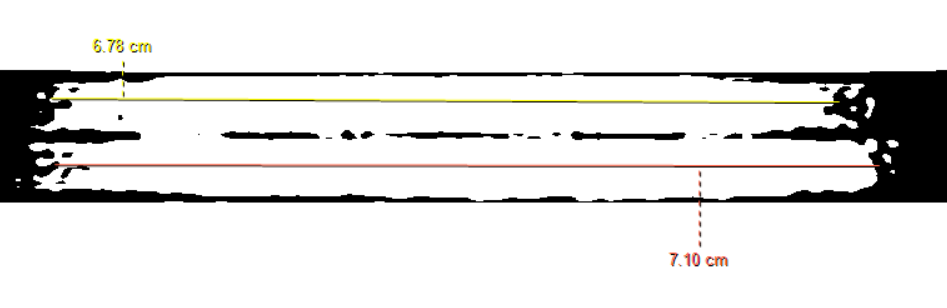

> The site series look better, but they fail, and the T1 scan has those
> areas to the left and right of higher intensity:
>
> T2
>
>
>
>
>
>
>
> Any ideas?
>
>
>
>
>
> Robert J. Kobistek, MS, FACR, DABR, MRSE(MRSC™)
>
> Medical Physicist
>
> RJK Medical Physics, Inc.
>
> 440-463-7879
>
>
>
