1220 Chapter 17.3 Diagram Question - error in 13th edition.

[Robert Zellmer]

There is in error in the figure below in the 13th edition.  It appears
to occur only in
the 13th edition.  I know of at least one person who's using a print
copy of the
13th edition.

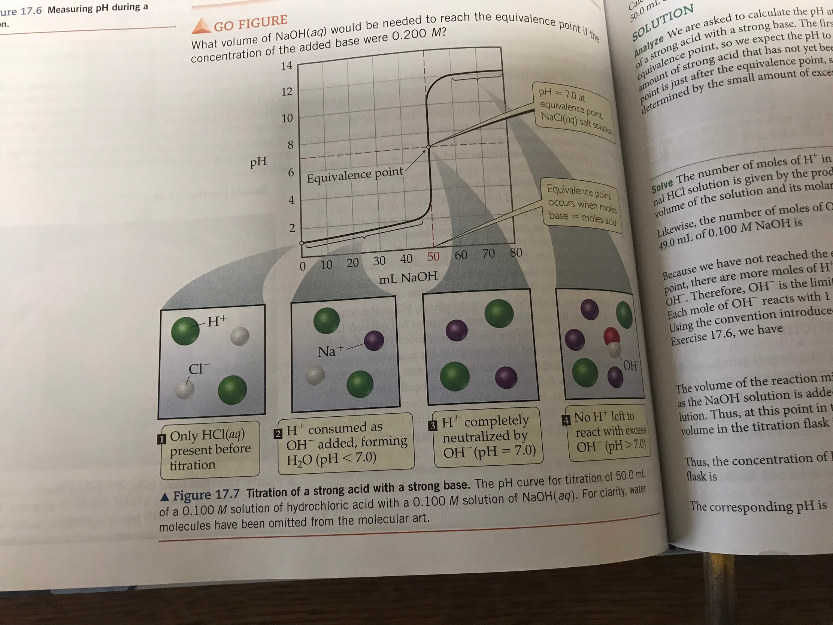

The error is in the first box of the bottom of the figure.  The circles
are misidentified.
The large green circle should be Cl- and the small grey circles are the H+.

Thanks to the person who noticed the mistake.

Dr. Zellmer
