Hi Jered,

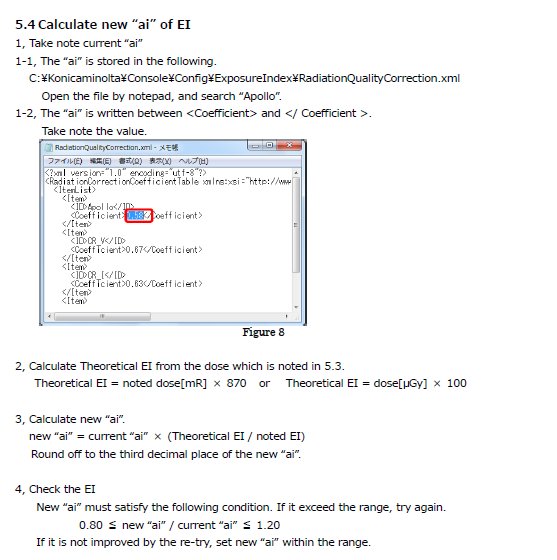

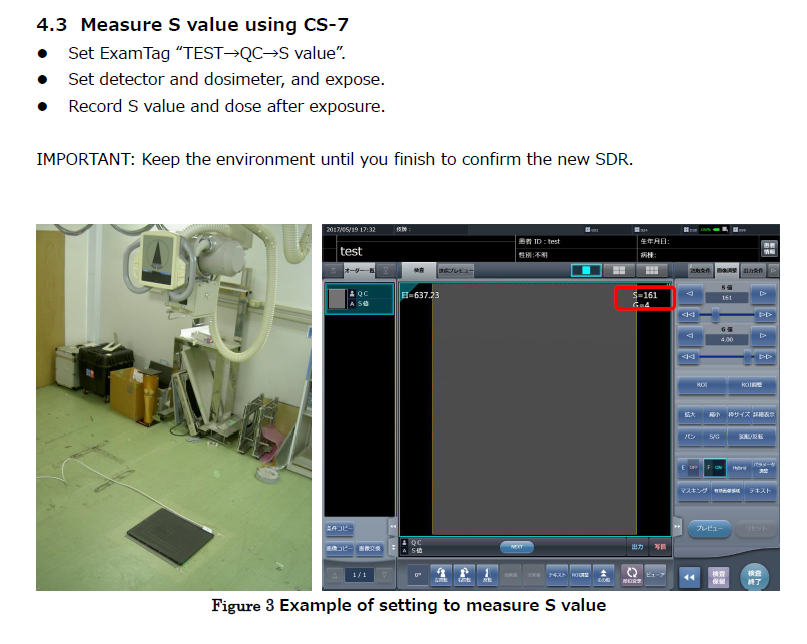

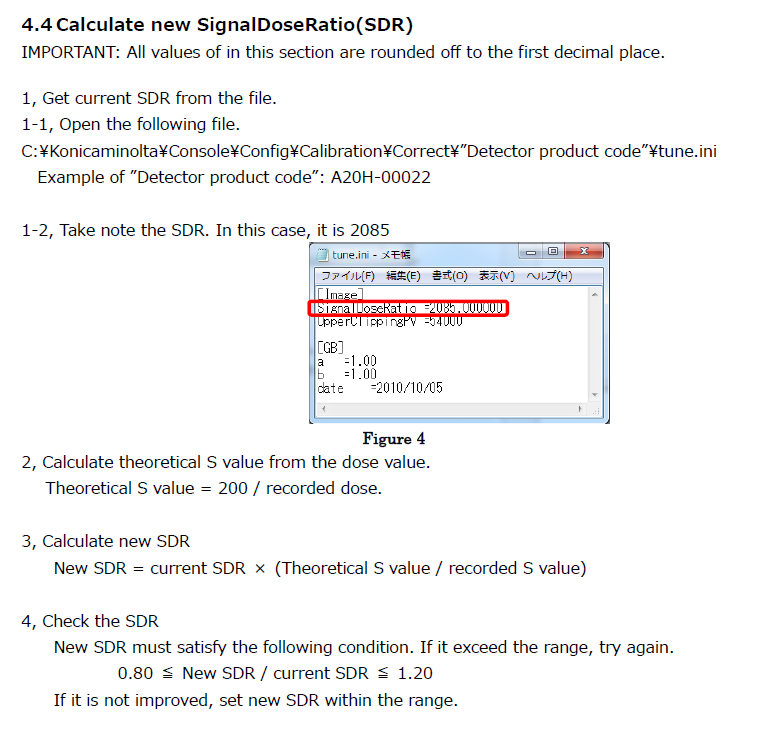

This one was tough for me to finally figure out, but here at
the screenshots to get a feel for what's happening (If anyone needs
the document I can send offline).  It's a two step process.  1) Verify
S-value accuracy 2) make sure correct energy correction (80 kVp no filter
vs. RQA-5 is applied depending on the detector.

[image: image.png]

[image: image.png]
[image: image.png]


[image: image.png]

Best,

Matthew Hoerner

On Wed, Oct 7, 2026 at 4:23 PM Jered Wells via Intl_dxmedphys_wd_osu_list <
intl_dxmedphys_wd_osu_list at lists.osu.edu> wrote:

> Hi Folks: I'm having some issues testing EI accuracy on a Konica Minolta
> Ultra U-arm system (software version 5. 6. 3. 0). It seems that testing
> with flat fields causes issues with pixel mean/median value estimation.
> I've looked through
> Hi Folks:
>
> I'm having some issues testing EI accuracy on a Konica Minolta Ultra U-arm
> system (software version 5.6.3.0). It seems that testing with flat fields
> causes issues with pixel mean/median value estimation. I've looked through
> the available AAPM literature (task group reports, presentations, etc.)
> without much success. I suspect there is a specific mode or procedure for
> testing EI on this system. If anyone has an SOP or guidance, I'd greatly
> appreciate it. I'm going back to do some follow-up testing on Friday.
>
> Best,
>
> Jered Wells, PhD, DABR
> https://urldefense.com/v3/__https://www.linkedin.com/in/jered-wells-phd-dabr/__;!!KGKeukY!2Z8qLeF7zC5dl0rpzbv4UJ0aCWu4OjPoxi-5bYJybDyJjMAbb8KRrbxWxwdZ6Gt1dI4TZhO64Hn6Rbq7UilXF8tFiCMaeVUS6lS6oA$
> <https://urldefense.com/v3/__https://www.linkedin.com/in/jered-wells-phd-dabr/__;!!KGKeukY!yJruJdDoSsBewb-omcEBONFfhcjkYyyWOWb026J9mtp2hXiyFsIMumagp6cVRNGj_3DhGJ9OCiaseNIajirFlt4lm8uA5vcZW-YxnwyLPe0L8qWG$>
>
>
