[Intl_DxMedPhys] US Artifact

[Travis Greene]

Nima,

I think you're on the right track that environmental EMI is likely the cause of the artifact you're seeing.

Years ago, I dealt with a similar intermittent issue on Doppler exams that had never been a problem before. After investigation, we traced it to EMI from a remote cardiac monitoring system that had recently been installed in the adjacent area. The artifact only appeared when a monitored cardiac patient was present in that space and was only visible during Doppler imaging.

The problem resolved once construction in the cardiac area was completed and patients moved farther away reducing the EMI in the ultrasound room.

Thank you,

Travis C. Greene, M.S., DABR
Senior Medical Physicist

[cid:image002.jpg at 01DCE14A.3474EDA0]
9320 McIntosh Road, Dover, Florida 33527-3712
Office: 813-685-3796 | FAX 813-685-2448 | Direct: 813-893-3428
Tell us how we're doing!  <https://urldefense.com/v3/__https://radser.com/satisfaction-survey/__;!!KGKeukY!y3tTA-hB2_h9ATRH7-2iwbrYymddrHiPHA0dEs0MGvpzLxaaoE8DM53NwZ38LIpeqpH7PhMYV7lzpveBw46YC6PnNMBG7K_EW5pinA$ >
https://urldefense.com/v3/__http://www.radser.com__;!!KGKeukY!y3tTA-hB2_h9ATRH7-2iwbrYymddrHiPHA0dEs0MGvpzLxaaoE8DM53NwZ38LIpeqpH7PhMYV7lzpveBw46YC6PnNMBG7K-fp6iB9Q$ <https://urldefense.com/v3/__http://www.radser.com/__;!!KGKeukY!y3tTA-hB2_h9ATRH7-2iwbrYymddrHiPHA0dEs0MGvpzLxaaoE8DM53NwZ38LIpeqpH7PhMYV7lzpveBw46YC6PnNMBG7K_z9KnWjw$ >

From: Intl_dxmedphys_wd_osu_list <intl_dxmedphys_wd_osu_list-bounces at lists.osu.edu> On Behalf Of Nima Kasraie via Intl_dxmedphys_wd_osu_list
Sent: Friday, May 8, 2026 12:12 PM
To: DxMedPhys List <intl_dxmedphys_wd_osu_list at lists.osu.edu>
Subject: [Intl_DxMedPhys] US Artifact

Hey folks, Anyone want to take a shot at this intermittent artifact that shows up on our Philips units? Obviously the artifact seems to be tied to beam steering because it changes direction with the box geometry. But since it is showing up on
Hey folks,

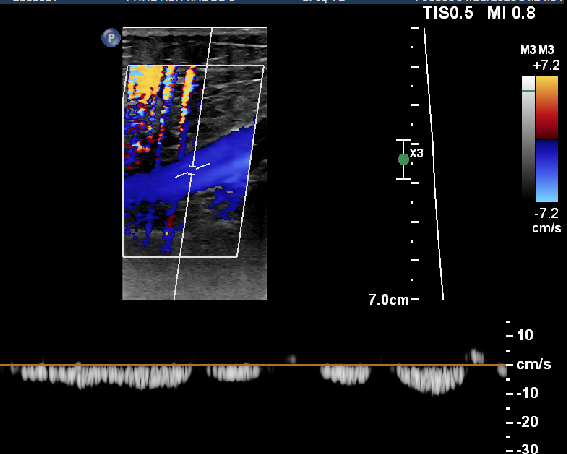

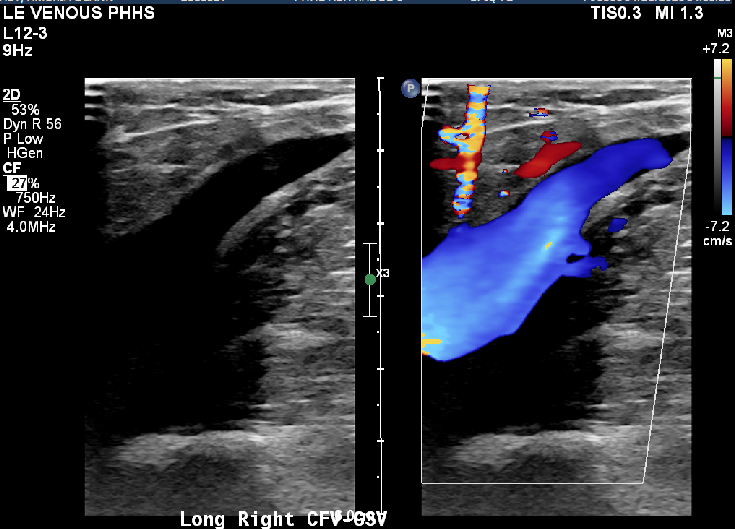

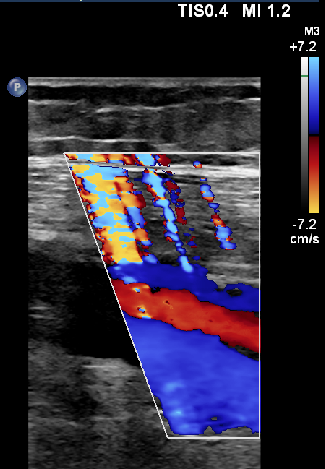

Anyone want to take a shot at this intermittent artifact that shows up on our Philips units?
[cid:image003.png at 01DCE14A.3474EDA0]

[cid:image004.png at 01DCE14A.3474EDA0]

[cid:image007.png at 01DCE14A.3474EDA0]


Obviously the artifact seems to be tied to beam steering because it changes direction with the box geometry.

But since it is showing up on multiple machines in the hospital, I suspect one of the following causes:

  *   environmental EMI
  *   software/firmware issue
  *   probe family issue
  *   network/power grounding problem
  *   shared configuration bug


Thoughts?


[cid:image008.png at 01DCE14A.3474EDA0]
Nima Kasraie, PhD, MSc, DABR, DABSNM
Lead Physicist, Children's Medical Center Dallas<https://urldefense.com/v3/__https:/www.childrens.com/__;!!KGKeukY!w28_FjzspO1hr8U6wAi_awW79spJ2YcpVMChtJ3ZxAyul5s3GjuhuLjOrnRbrgiMfWbY6QiBnGodJUGOawgTaDMuhRm7Llj6CuraIq2TmZxp3IiyucYXGg$>
Professor, Department of Radiology, UT Southwestern<https://urldefense.com/v3/__https:/profiles.utsouthwestern.edu/profile/187443/nima-kasraie.html__;!!KGKeukY!w28_FjzspO1hr8U6wAi_awW79spJ2YcpVMChtJ3ZxAyul5s3GjuhuLjOrnRbrgiMfWbY6QiBnGodJUGOawgTaDMuhRm7Llj6CuraIq2TmZxp3Ii5fAF3aw$>
Phone: 214-648-7978
[cid:image009.png at 01DCE14A.3474EDA0]
