titration curve review questions - graph

[Zellmer, Robert]

I mentioned this in class.  Try to do this before our first lecture after spring
break.

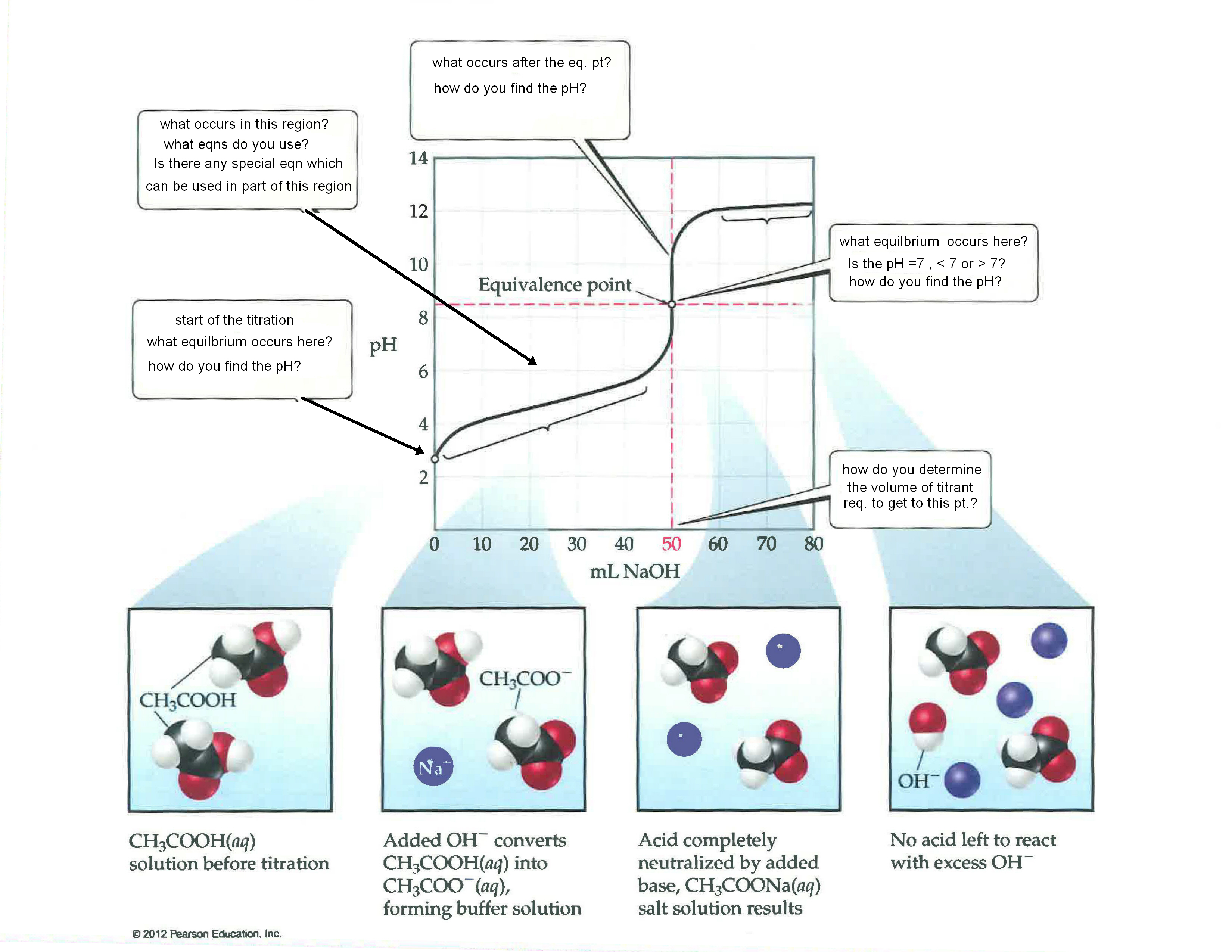

Here's a modified copy of a titration curve for a monoprotic weak acid (acetic
acid in this example) from the textbook.  I've marked it up with what you should
be able to determine is occurring at various points along the titration curve.
Answer the questions in the bubbles.  Try not to look at the stuff at the
bottom unless you need a clue.

Hopefully, you've done some weak acid/strong base and weak base/strong
acid titration problems.  If so, you should be able fill in this diagram.

My plan is to review this the first lecture after spring break.

Titration questions will be on the quiz the weekend we come back from
spring break.  There is no quiz this Sunday or the following Sunday.
The next quiz is Sunday, March 27.  It will cover 17.3, 17.4 and at least
part of 17.5.

Dr. Zellmer
