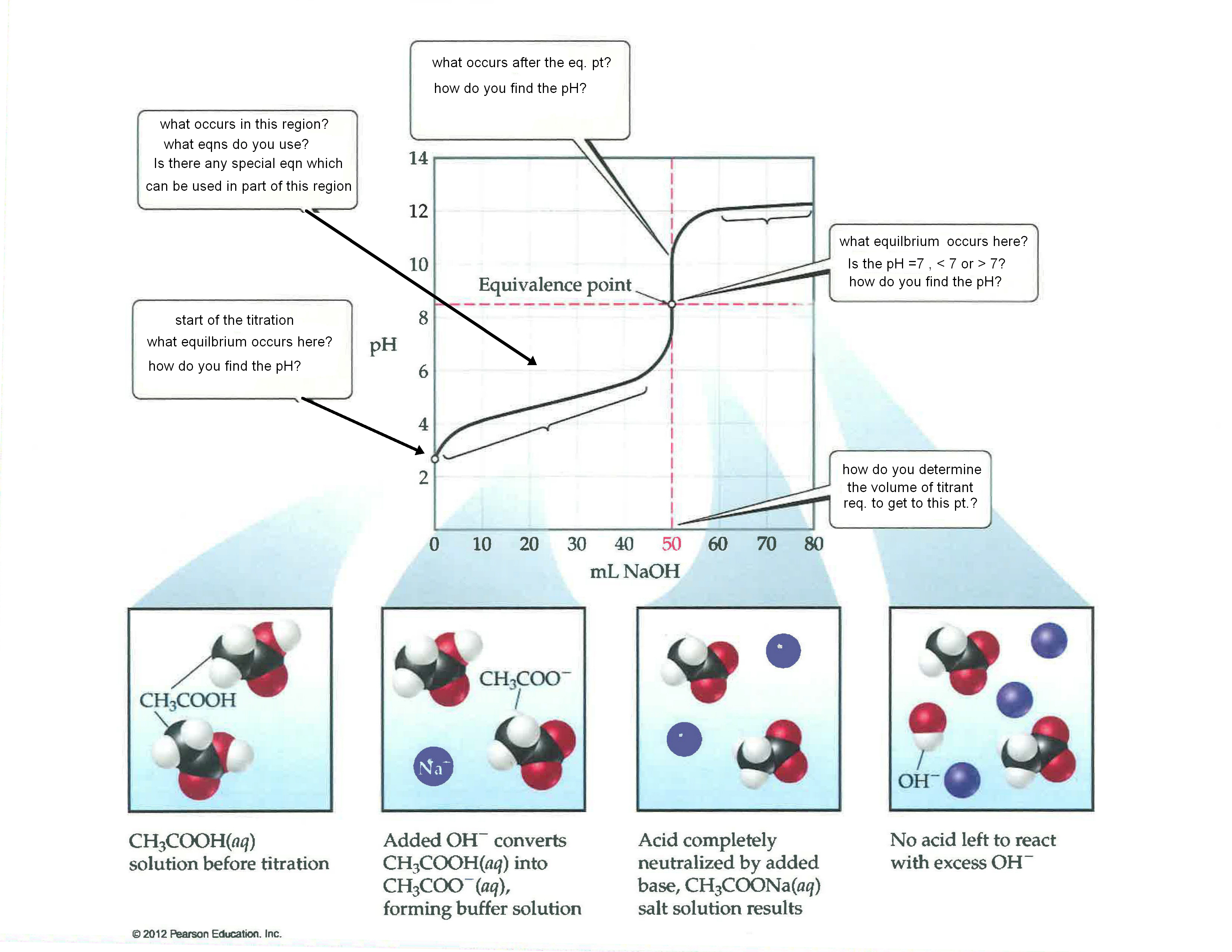

I don't remember if I mentioned this in class last week and on Wed.  Here's
a modified copy of a titration curve for a monoprotic weak acid (acetic acid
in this example) from the textbook.  I've marked it up with what you should
be able to determine is occurring at various points along the titration curve.
Answer the questions in the bubbles.  Try not to look at the stuff at the
bottom unless you need a clue.  You can go over this in recitation this week.
If in the future I feel we have time we can discuss it again in lecture.
Hopefully you've done some weak acid/strong base and weak base/strong
acid titration problems.  If so, you should be able fill in this diagram.

Dr. Zellmer
